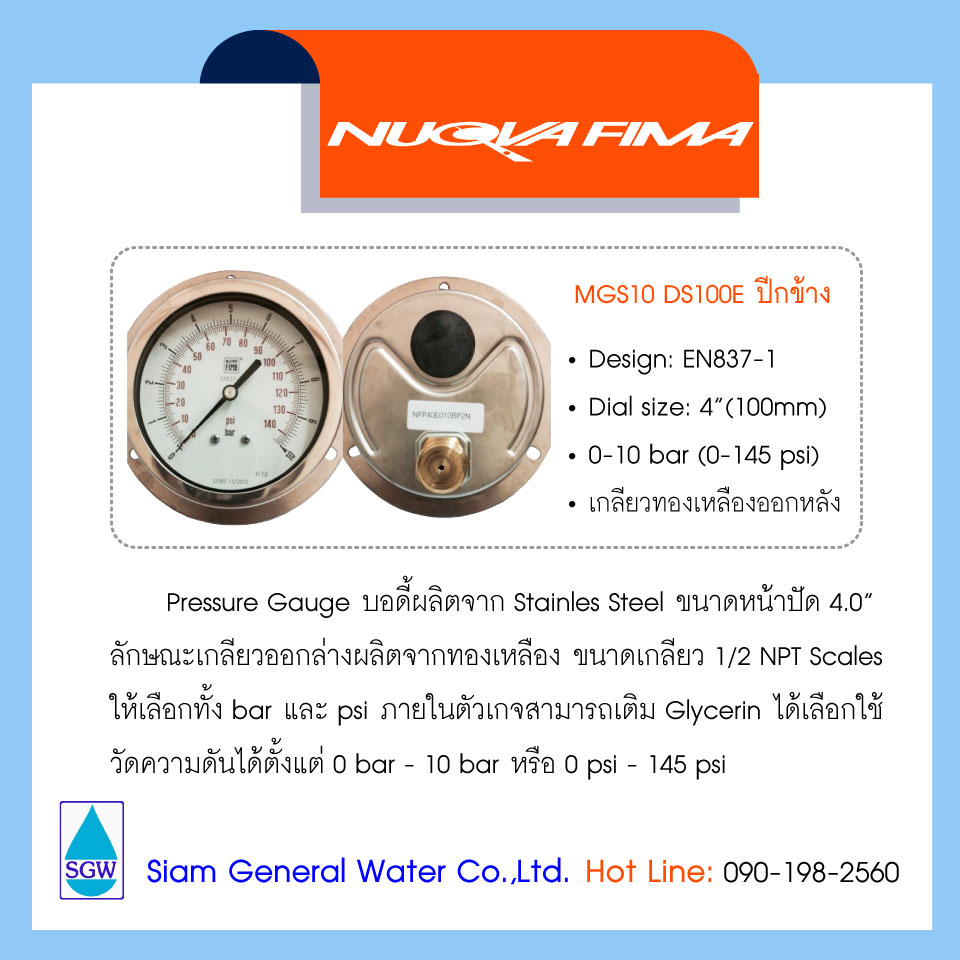

Nuova Fima MGS10 DS100E ปีกข้าง {DS 4” (100mm)} # 0-10 bar / 0-145 psi (เกลียวหลัง+น้ำมัน)

Instruments designed for use on power units, pumps, hydro-cleaning machines, presses, engine compressors, turbines, diesel engines, chemical, petrochemical and refrigerating plants and on machines and equipment where pulsating pressures or mechanical vibrations are apparent. They can be used with gaseous or liquid media which do not corrode copper alloy and which do not have high viscosity or do not cristalize.

Specification:

• Design:  EN 837-1.


• Safety designation:  S1 as per EN 837-2.


• Ranges:  from 0-10 bar to 0-145 PSI


• Accuracy class:  1,0 as per EN 837-1.


• Damping liquid:  glycerine 98% or silicon oil.


• Ambient temperature:
  --> +32...+149 °F (0...+65 °C) with glycerine filling;
  --> -40...+149 °F (-40...+65 °C) with silicon oil filling.


• Process fluid temperature:  max +149°F (+65 °C).


• Protection degree:  IP 67 as per IEC 529.
• Thermal drift:  ±0,4 %/10 °C of range (starting from 68°F - 20°C).


• Working pressure:
  --> 100% of FSV for static pressure;
  --> 90% of FSV for pulsating pressure.


• Overpressure limit:  30% of FSV (max 12 h).
• Socket material:  copper alloy with internal restrictor Ø 0.03” (0,8 mm).


• Bourdon tube:
  --> copper alloy for ranges ≤ 600 psi (40 bar);
  --> AISI 316L st.st.for ranges > 600 psi (40 bar).


• Case: stainless steel.


• Ring: stainless steel, bayonet lock


• Window: tempered glass


• Movement: copper.


• Dial: aluminium, white with black markings


• Pointer: not adjustable, aluminium ,black
